HILA Electric City Bus (Battery Electric)

HILA Electric City Bus (Battery Electric)

Product Overview

• Vehicle Type: Electric City Bus
• Driving Range: 250–350 km (depending on driving behavior, heating and A/C usage)
• Energy System: Battery Electric Vehicle (BEV)
• Floor Type: Low Entry
• Application: Urban public transportation

Dimensions & Weight

• Overall Dimensions (L × W × H): 12,000 × 2,550 × 3,390 mm
• Gross Vehicle Weight (GVW): 19,000 kg

Battery & Electric Powertrain

• Battery Type: CATL Lithium Iron Phosphate (LFP)
• Battery Capacity: 350 kWh
• System Voltage: 600 V
• Motor Type: Permanent Magnet Synchronous Motor
• Rated Power: 195 kW
• Maximum Torque: 3,200 Nm
• Rated Speed: 3,400 rpm

Charging System

• Charging Port: Dual EU-standard charging ports

Chassis & Suspension

• Chassis Type: Standard chassis
• Front Axle: Disc axle
• Rear Axle: Disc axle
• Suspension System: Air suspension (Front: 2 air bags / Rear: 4 air bags) with ECAS

Steering & Braking

• Steering System: Power steering with telescopic steering column, height and tilt adjustable
• Braking System:
  • Front and rear disc brakes
  • Dual-circuit pneumatic braking system
  • Energy storage spring parking brake
  • ABS + ASR

Wheels & Tires

• Tire Size: 295/80 R22.5
• Wheel Rim: Aluminum alloy
• Spare Tire: Not included

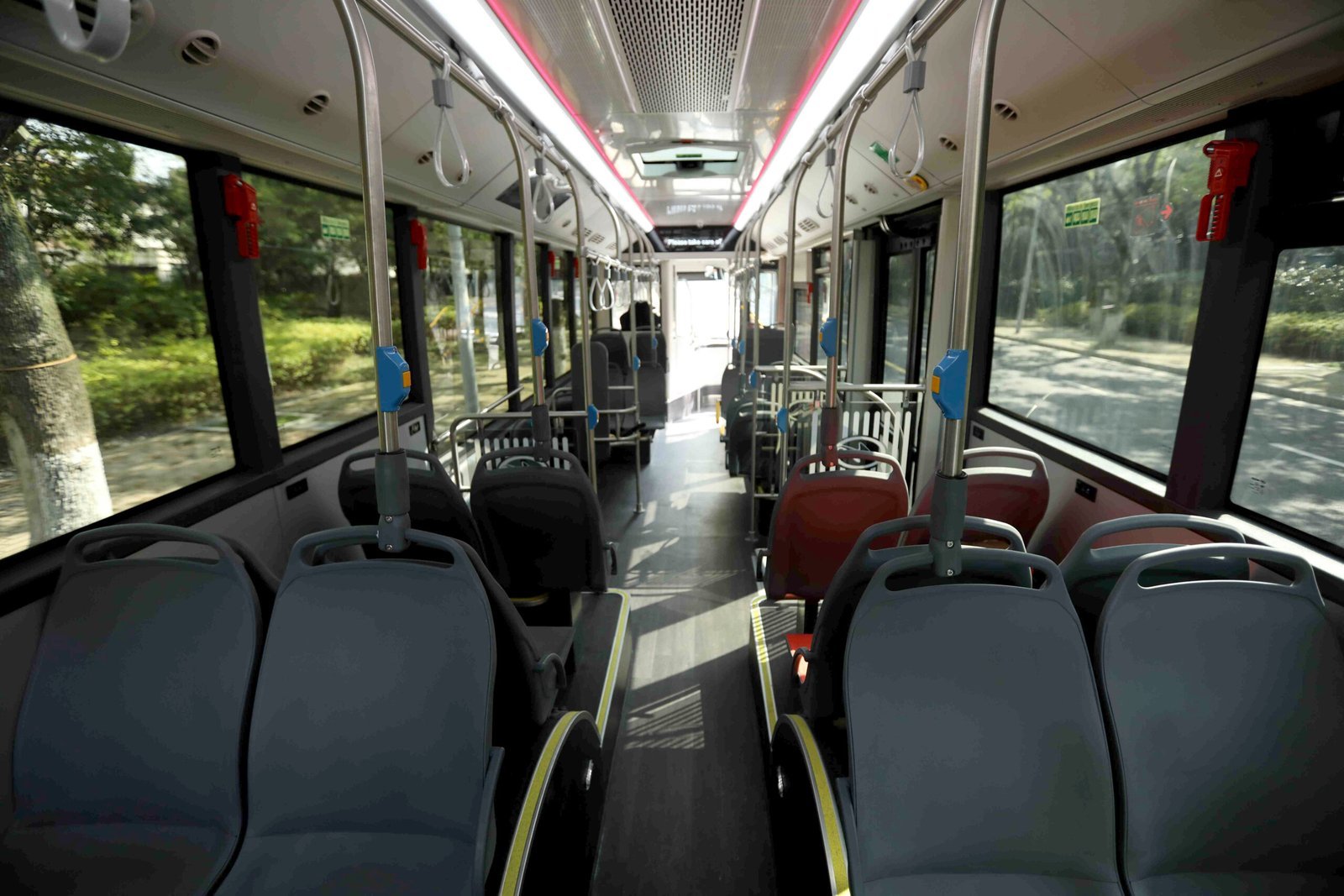

Interior & Passenger Area

• Floor Material: PVC wear-resistant flooring (walls and middle ceiling)
• Handrails: Stainless steel handrails with fly rings
• Fly Rings: Triangle type (20–30 units depending on configuration)
• Driver Sun Visor: Manual
• Instrument System: Full CAN system
• Digital Clock: With thermometer and hygrometer function

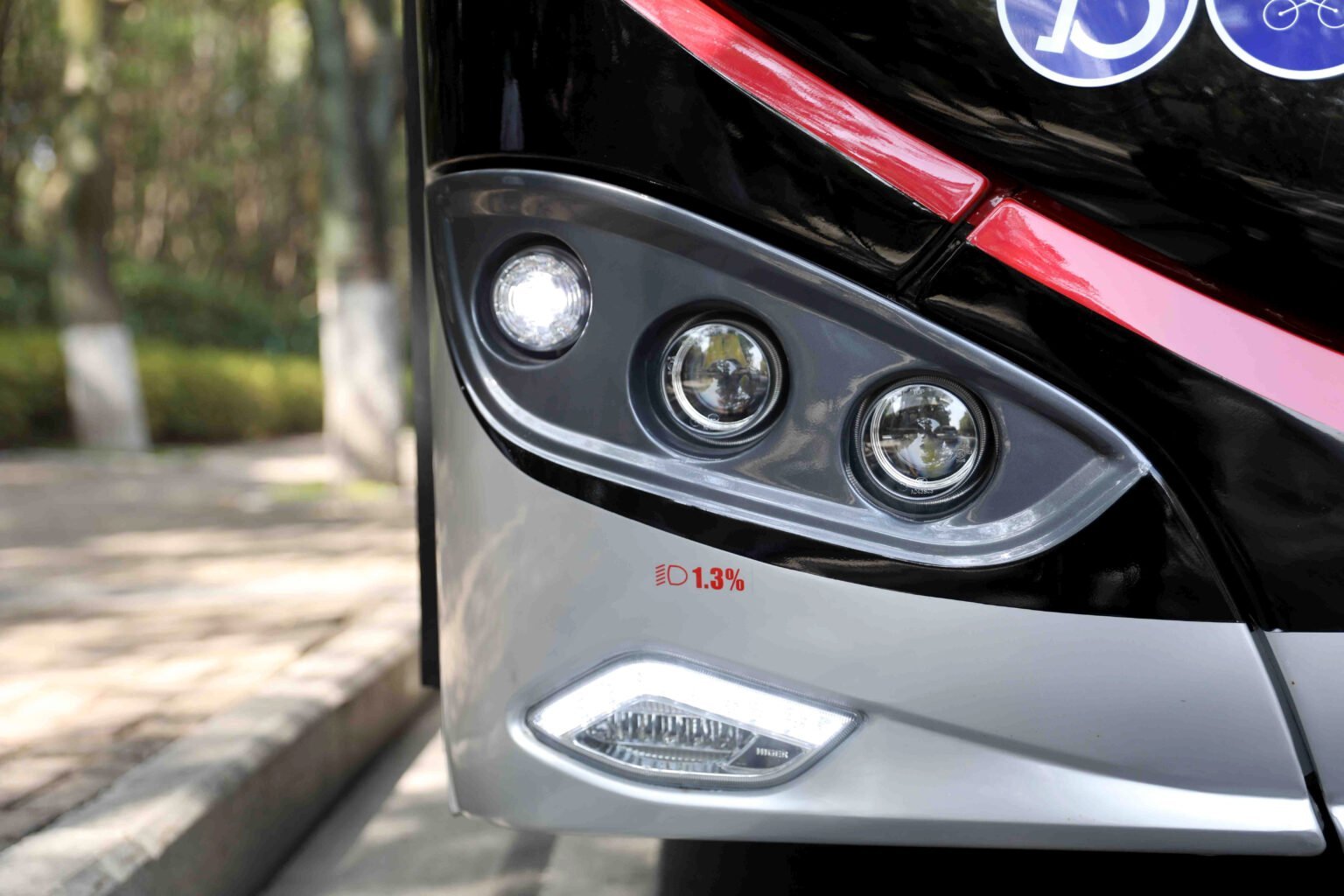

Lighting & Visibility

• Interior Lighting: Long-line ceiling LED lamps and step lamps
• Windshield Wiper System: Standard

Audio & Multimedia

• Audio System: AM/FM Radio
• Driver Microphone: Included

Destination & Information Systems

• Destination Boards:
  • 3 digital destination displays (front, rear, side)
  • Programmable in Arabic and English by the driver
• Interior Destination Panels: Included

Camera & Monitoring Systems

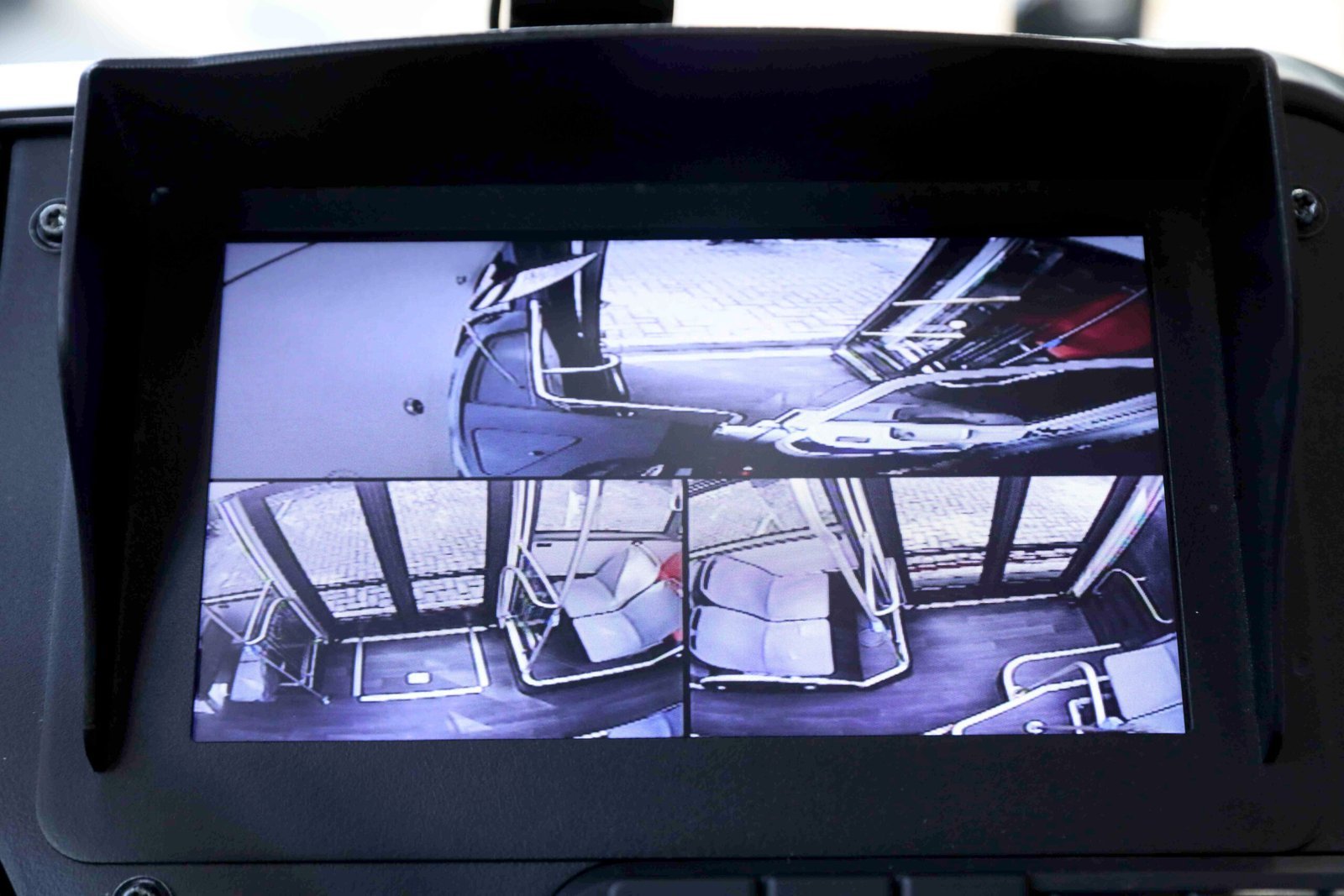

• Camera System:
  • Middle door and reverse monitoring
  • 6-camera system with hard disk recorder

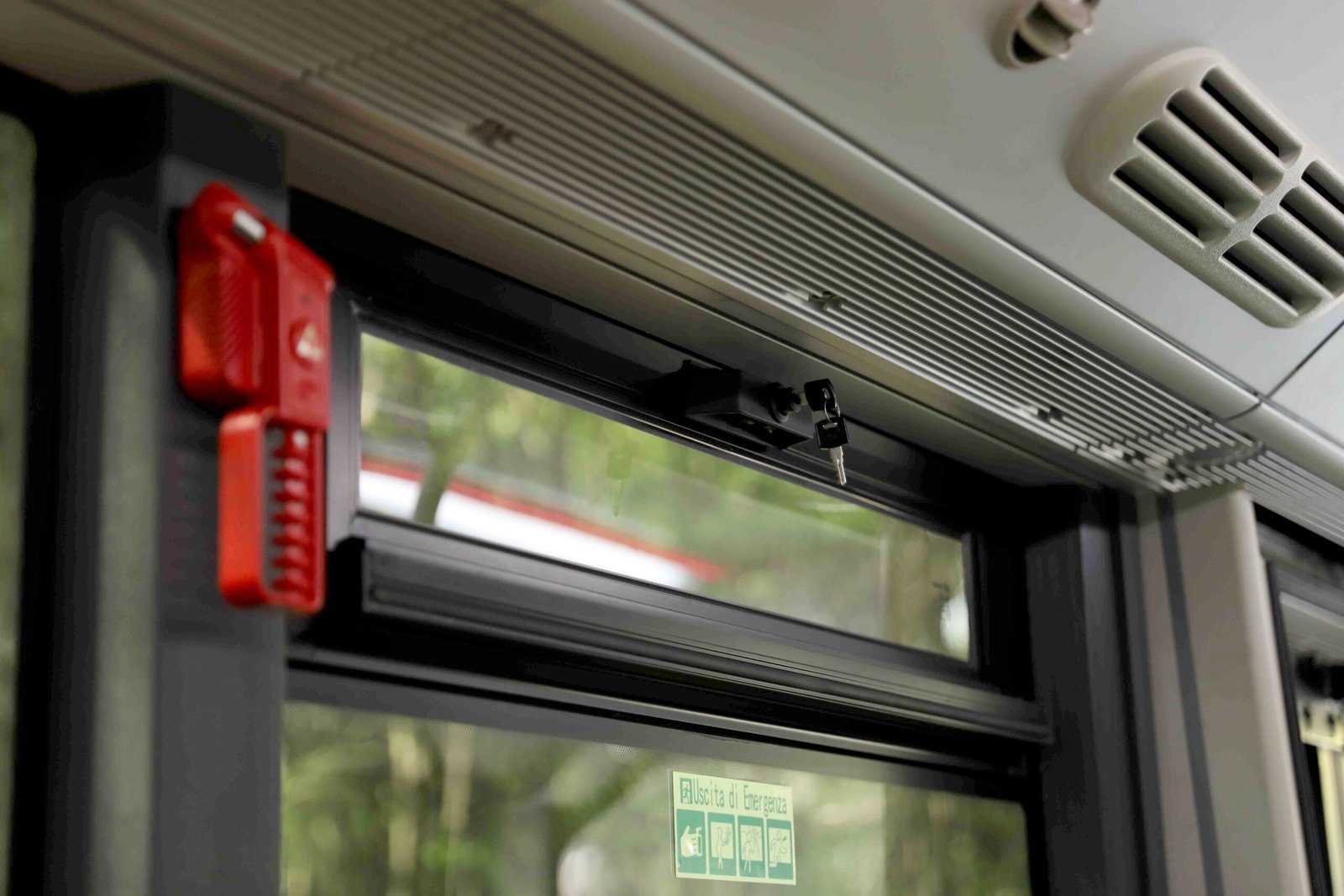

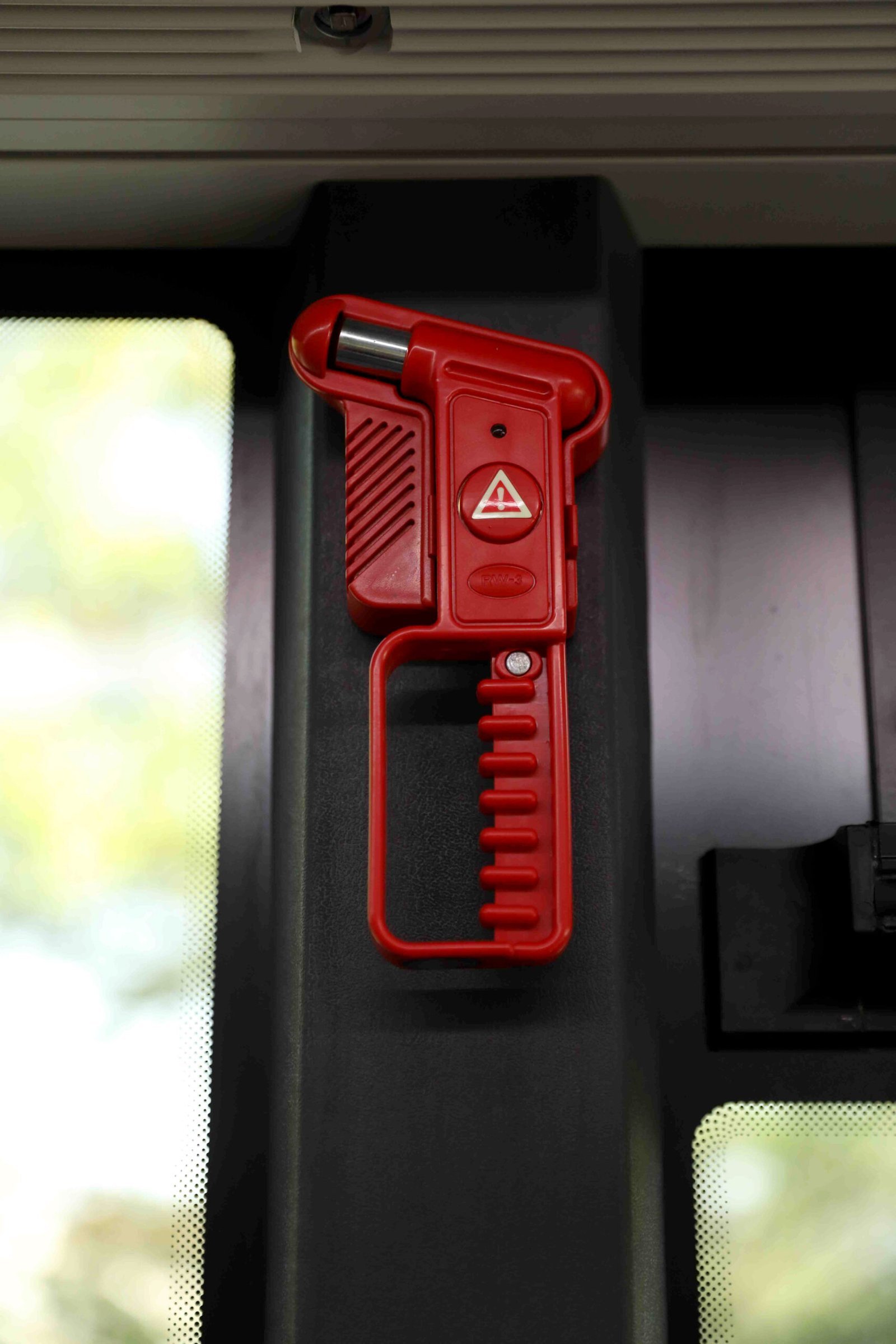

Safety & Emergency Equipment

• Fire Extinguishers:
  • Two 4 kg ABC fire extinguishers
  • Two 5 kg ABC fire extinguishers
• Emergency Roof Exits: Two units with ventilation function

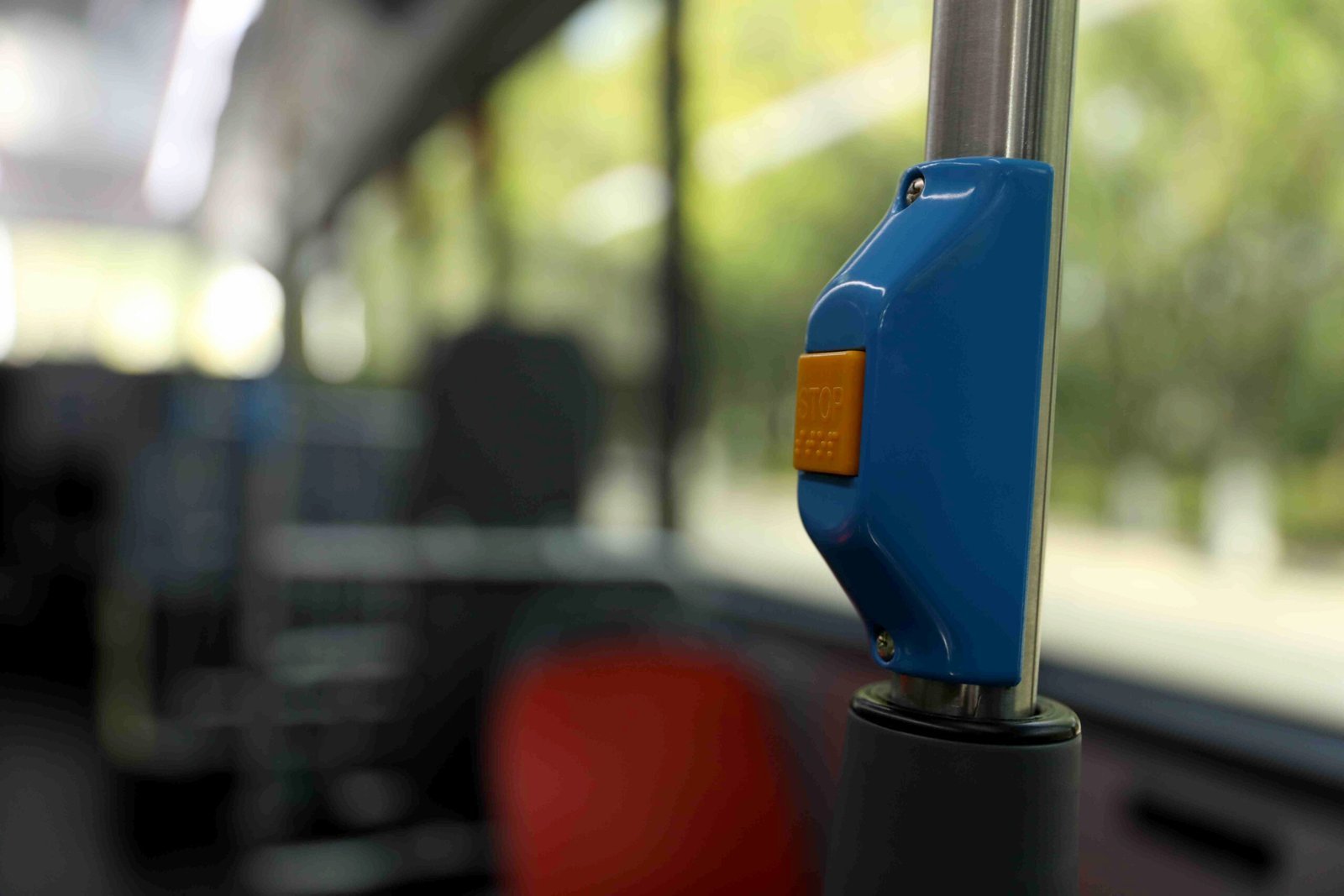

• Stop Button: Included

Electrical & Auxiliary Systems

• Reserved Wiring:
  • GPS system
  • IC card machine
• Horn: Electrical horn

Notes

• Specifications may vary depending on configuration, region, and customer requirements.
• All information is subject to change without prior notice.
